Are installed on the object and, using the GNSS signal from the satellite, determine the relative location with a millimeter-level precision. The measurment is repeated every second.
Collects measurement data from GNSS sensors and sends it to the Estimo cloud-based processing system. The concentrator is installed next to the monitored object.
We analyze data, generate graphs and perform condition assessments. You use our convenient web-service anywhere, anytime.
GNSS recievers provides coordinates every second, you always know about the current condition of the monitored object.
Our cloud service allows you to get information about the object from anywhere at any time.
We store data for the entire time you use our product so that you can compare readings over time.
Early-warning, evaluation of collected data and condition assessment of the monitored object - all at Estimo web service.
Our cost is lower than any traditional surveying solution
We will send you a ready-to-mount kit and instructions so that you can install our system without the help of experts.

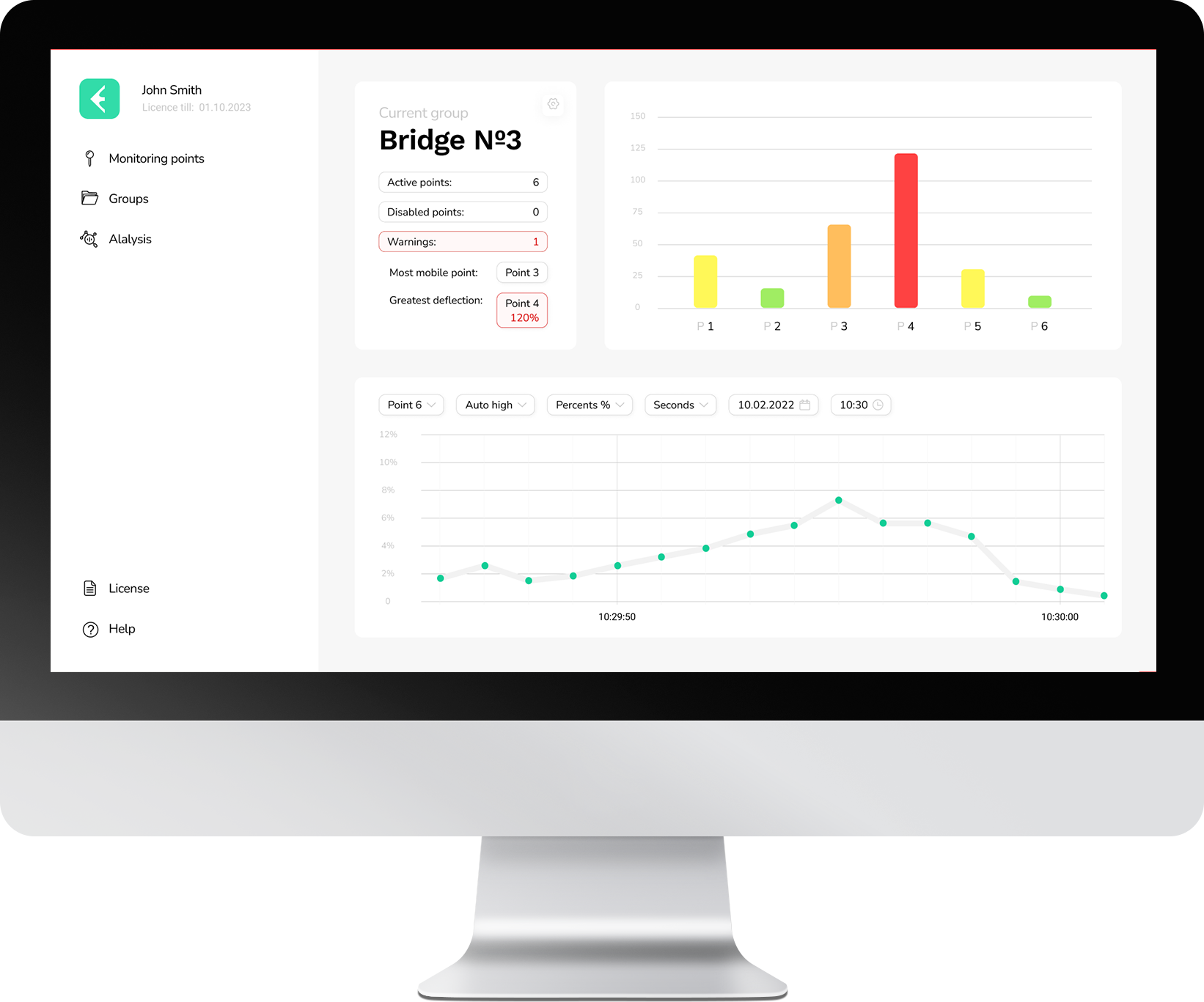

Estimo web-service is a modern tool to operate monitoring systems. From any computer you can get your data sorted and visualised in graphs and map views. We designed our service to be user-friendly, so a new user don`t have to spend much time studying interface and functionality.
User-friendly
design
Remote
access
Data
analysis
You can create groups from multiple monitoring points. It helps, when you want to separate structures.
To compare data from several monitoring points, you can add points to the graph.
When monitoring point gets close to the critical limit, we will send you a notification by email, sms and on your Estimo account.
We store all your data, from the day you start using Estimo, so you are able to follow the dynamics through the ages.
In Estimo we design and produce our own GNSS smart-antennas to use it as monitoring sensors. Inside the durable plastic housing are the antenna element, amplifier, receiver and processor.
Receiver and concentrator are connected by a cheap and very rugged two-wire cable. This connection provides power and data transmission, and also it is protected from lightnings and short circuits. If required, the cable can be very long - up to 1km.
Using our own antenna element made it possible to achieve high precision with lower production cost.
Height
125 (mm)
Diameter
165 (mm)
Weight
1.5 (kg)
Working temperature
-20°C...+50°C
Waterproof and dustproof
Made of durable materials
8/5" Rig on the bottom
One-click connector
Up to 1 km. wire connection
Concentrator provides power to the sensors, collects data, and sends it to the cloud server. Inside there are easy-removable modules, mounted on a DIN-rail. Concentrator can be mounted on a wall or pole.
Length
300 (mm)
Width
400 (mm)
Height
210 (mm)
This module provides power and lighting protection for monitoring sensors
Module that collects and transfer raw data from interrface modules to Estimo data server using internet connection
You can create groups from multiple monitoring points. It helps, when you want to separate structures
Dimensions
Diameter
165 mm
Height
125 mm
Mount rig
1"-14
Work temperature
-40°C to +50°C
Ingress Protection
IP67
Supply voltage
12-24V
Power consumption
3W
Position update rate
1Hz
Precision
Horizontal
1-3 mm
Vertical
4-6 mm
GNSS signal
GPS/Galileo/GLONASS
Dimensions
Length
300 mm
Width
400 mm
Height
210 mm
Work temperature
-40°C to +50°C
Ingress Protection
IP66
Supply voltage
AC220V
Power consumption
10W
